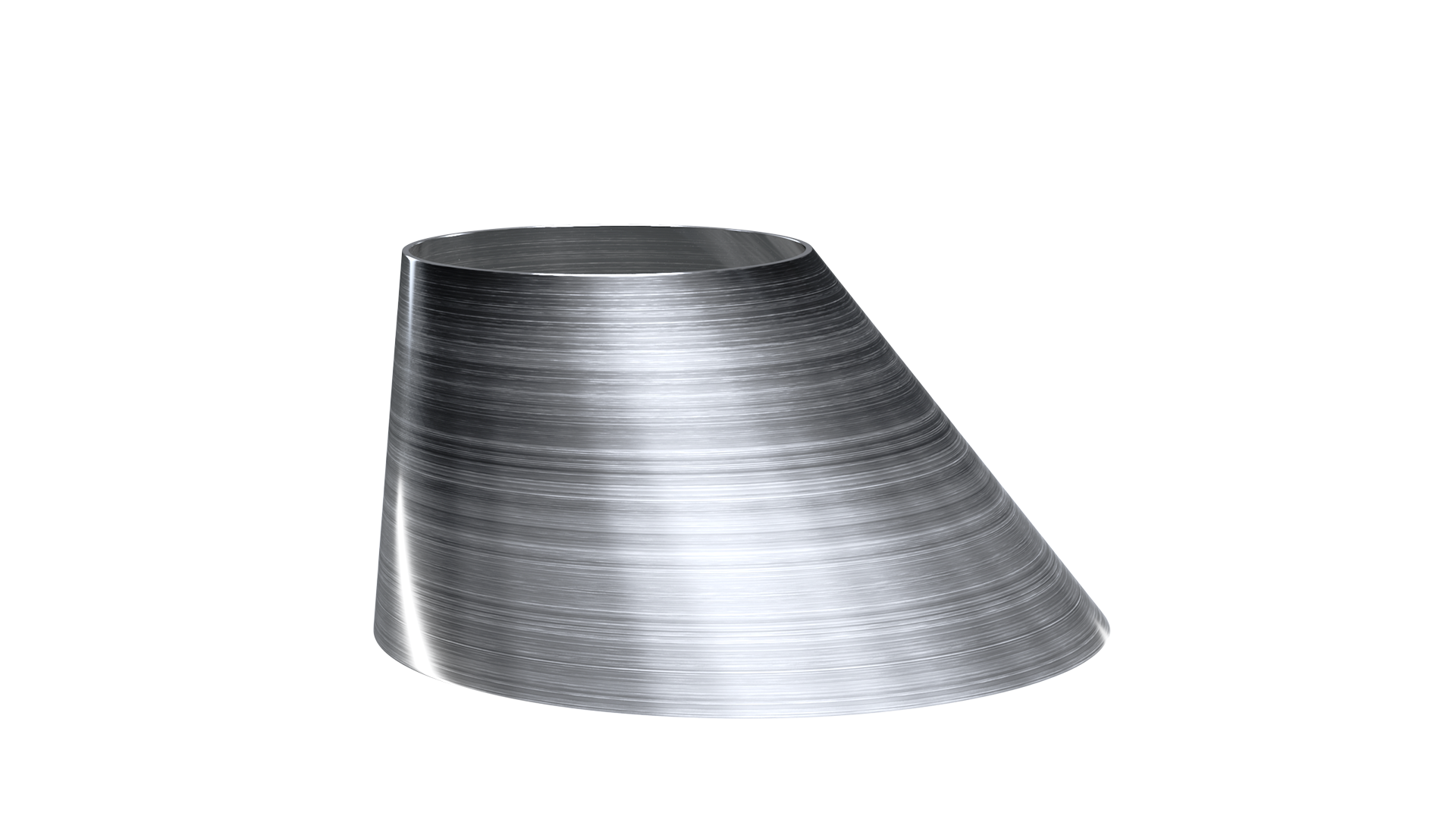

Eccentric cone with no edges

Tie1 type


Technical specifications
oD = 168÷6500
α = 5°÷85°
H = on request
t = 2÷35
Key to symbols
oD = Ouside diameter
iD = Inner diameter
od = outside diameter
id = inner diameter
α = base flare angle
H = outside overall height
t = thickness
NOTE = the measurements indicated can be applied depending on every single parameter size.
