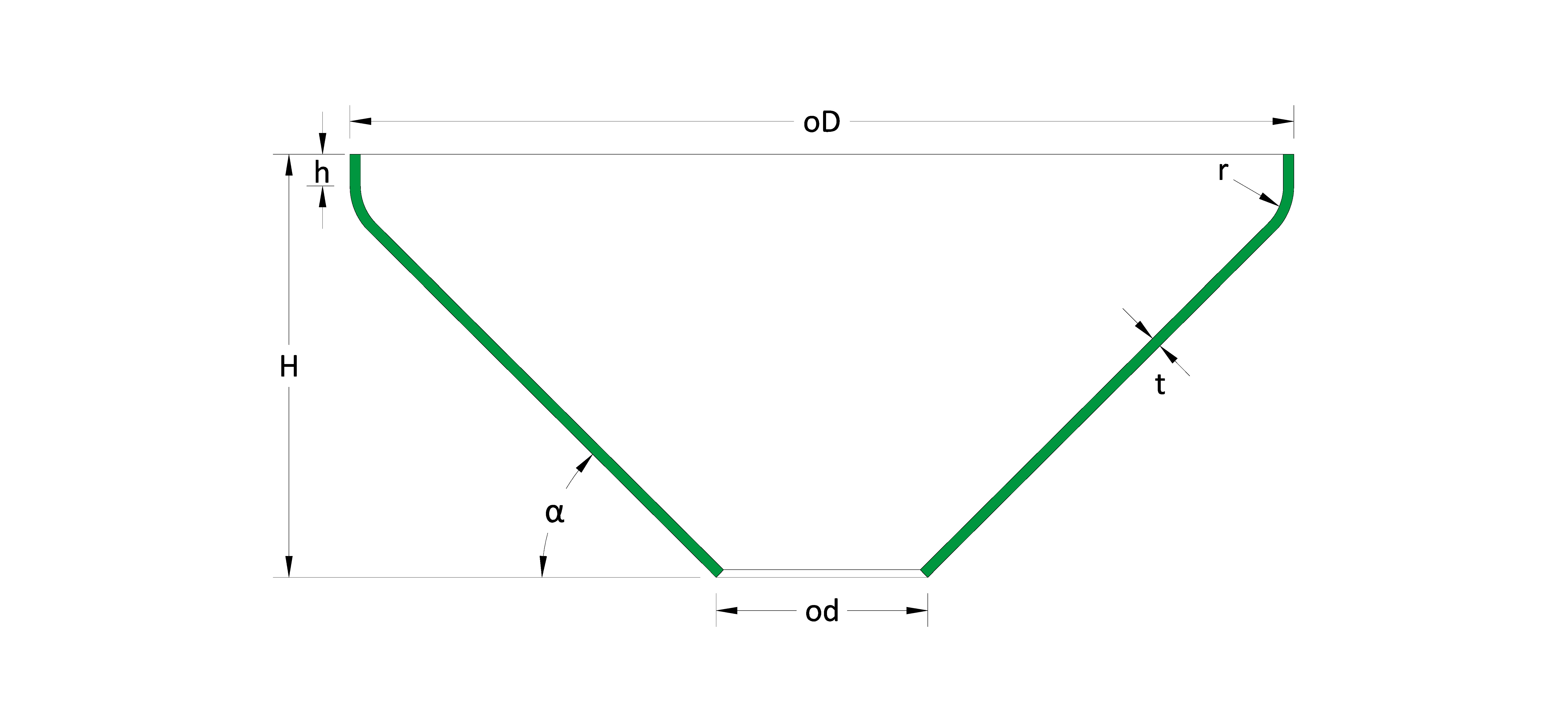

Cone with edges

Ti2 type

Technical specifications
oD = 168÷6500
r = 0÷400
h = 0÷100
α = 5°÷85°
H = on request
t = 2÷35
Key to symbols
oD = Outside diameter
iD = Inner diameter
od = outside diameter
id = inner diameter
r = inner knuckle radius
h = height
α = base flare angle
H = outside overall height
t = thickness

Bevels table

Tommasin offer numerous beveling options for you. We realise precise and high-quality bevels, from the simplest to the most complex ones.


Manufacturing tolerances

Tommasin is synonym of transparency and accurate manufacturing. We provide our manufacturing tolerances to assist the customer in producing its productive process.


Supply conditions

Discover our variety of dished heads manufacturing and supply models. Our products fit our costumers' needs since they are manufactured with attention for the details, from bevels and holes, to high-quality materials.
